KD-446L - 18 Gauge Metal Single Cut Electric Shear
KD-446L - 18 Gauge Metal Single Cut Electric Shear
Regular price
$540.00 CAD
Regular price
Sale price
$540.00 CAD
Quantity
Couldn't load pickup availability

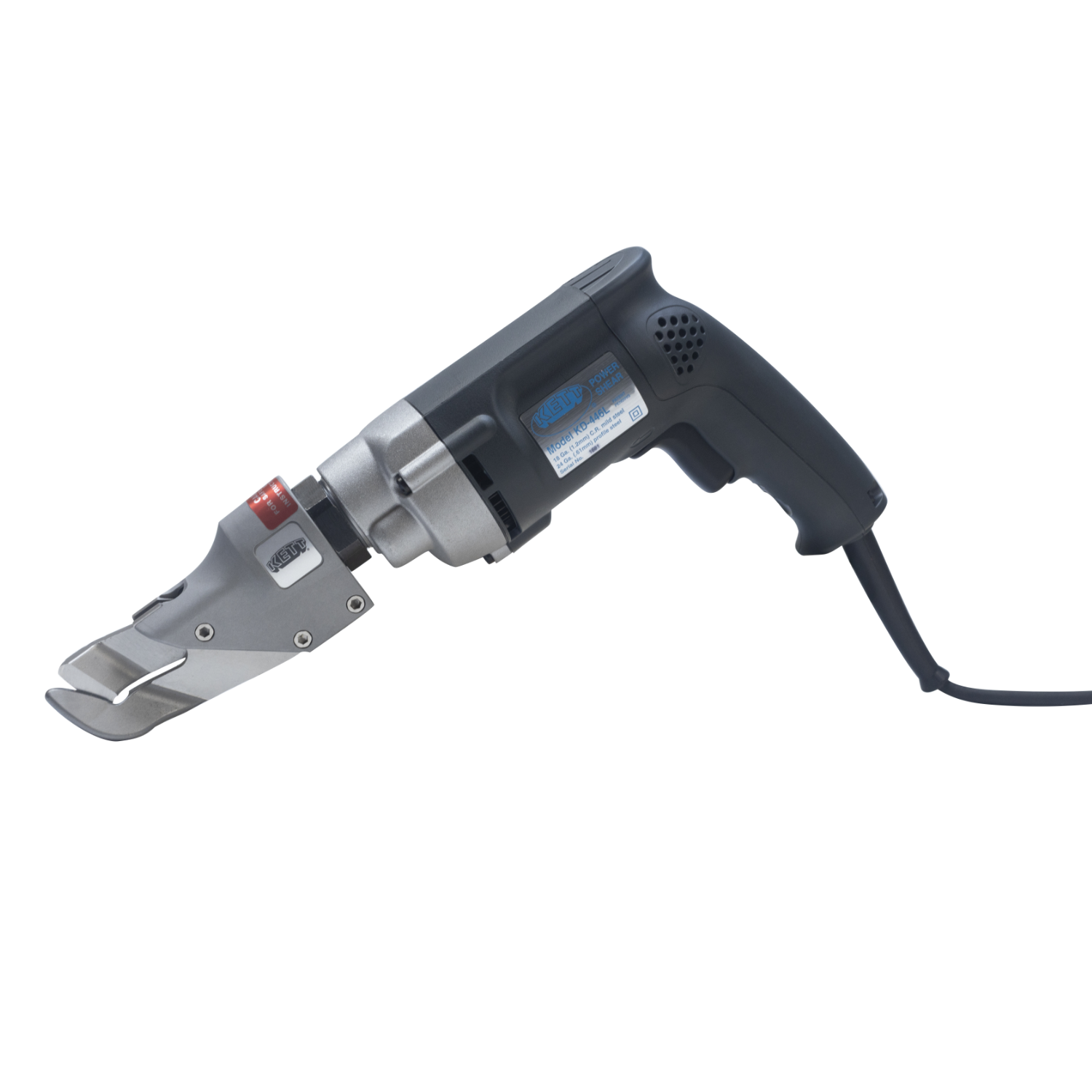

The KD-446L 18 Gauge Metal Single Cut Electric Shear cuts up to 18 gauge cold rolled mild steel, spiral pipe, metal studs and corrugated metal. This profile shear cuts up to 300 inches per minute with left hand A-2 tool steel blades allowing for a tight cut at a radius of 3 inches. The variable speed electric motor provides a lightweight and easily maneuverable at 2500 RPM.
Specifications
Specifications
- Amps
- 5
- RPM
- 0-2500
- Power Source
- 120 V
- Shear Head
- 46-20 Aluminum
- Cold-Rolled Steel Capability
- 18 Gauge
- Spiral Pipe, Metal Studs, and Corrugated Metal Capability
- 18 Gauge
Manual & parts
Manual & parts
Manual, specifications and parts lists for the Kett KD-446L Profile Shears.
Read the manual & parts listReplacement parts
-
KIT #146L - Replacement Blades for 18 Gauge Single Cut Left Shears
Regular price $248.00 CADRegular price -
In production41-24 - Eccentric Bearing Assembly
Regular price $39.00 CADRegular price -
Kit #92 - Replacement Screw And Insert Kit for Heavy Duty Steel and Aluminum Housings
Regular price $12.00 CADRegular price -
In production46-21L - 18 Gauge Single Cut Left Shear Center Blade
Regular price $112.00 CADRegular price
Every part is listed with its assembly on the manual page.
