KD-400 - 18 Gauge Metal Electric Shear

KD-400 - 18 Gauge Metal Electric Shear

$324.00 CAD
$324.00 CAD
Sale In production

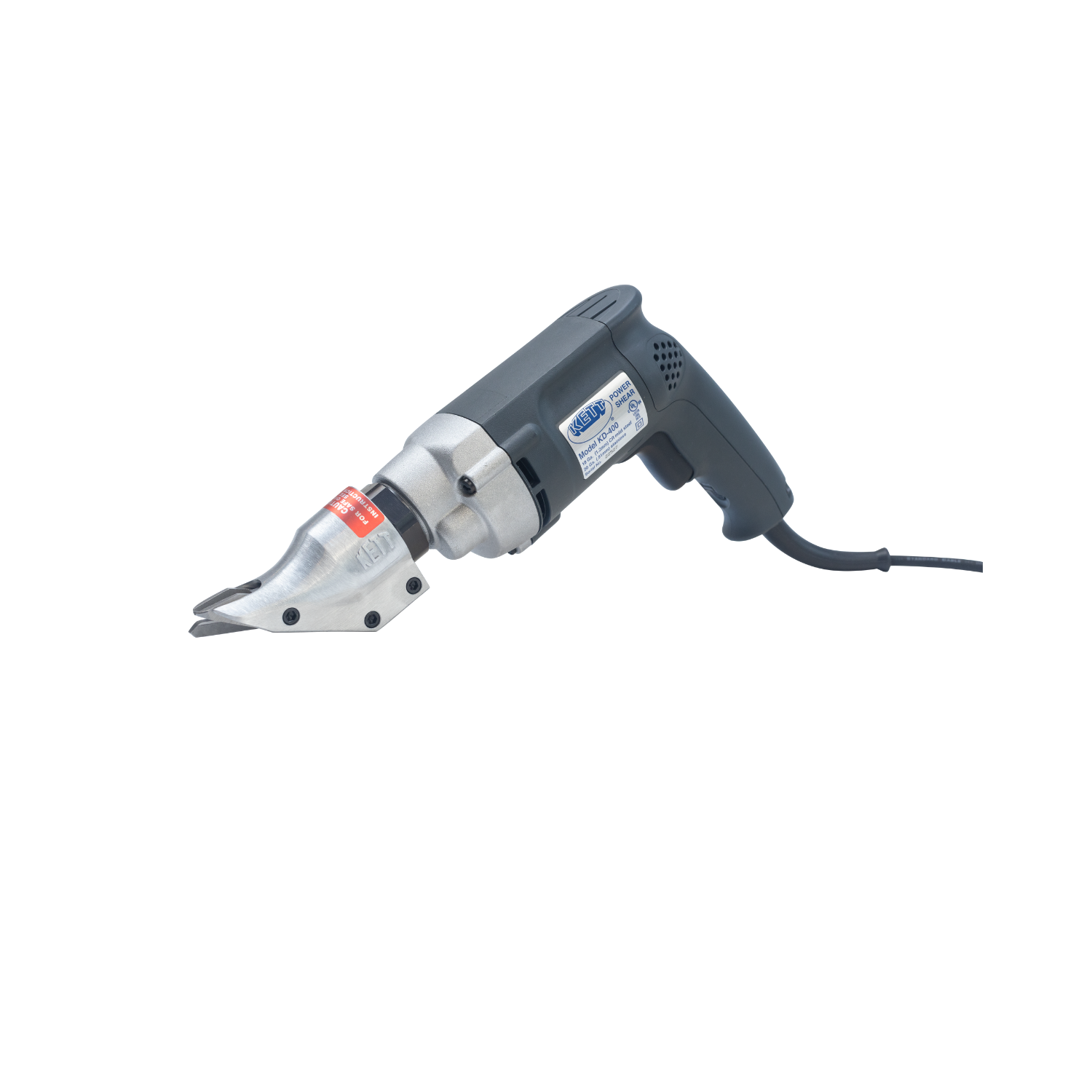

The KD-400 18 Gauge Metal Electric Shear is designed to cut cold-rolled mild steel up to 18 gauge and most grades of stainless steel up to 20 gauge at a rapid rate of 300 inches per minute. The controlled waste strip prevents warping or burring of your finished piece. The variable speed 2500 RPM electric motor paired with our A-2 steel blades helps you maneuver tighter curves for fast, clean performance on the job.

Specifications
Amps
5
RPM
0-2500
Power Source
120 V
Shear Head
60-20 Aluminum
Cutting Speed
300 in/min
Min. Cutting Radius
6 in
Cold-Rolled Steel Capability
18 Gauge
Stainless Steel Capability
20 Gauge

Manual & parts

Manual, specifications and parts lists for the Kett KD-400 18 Gauge Double-Cut Shears.

Read the manual & parts list

Replacement parts

Every part is listed with its assembly on the manual page.
