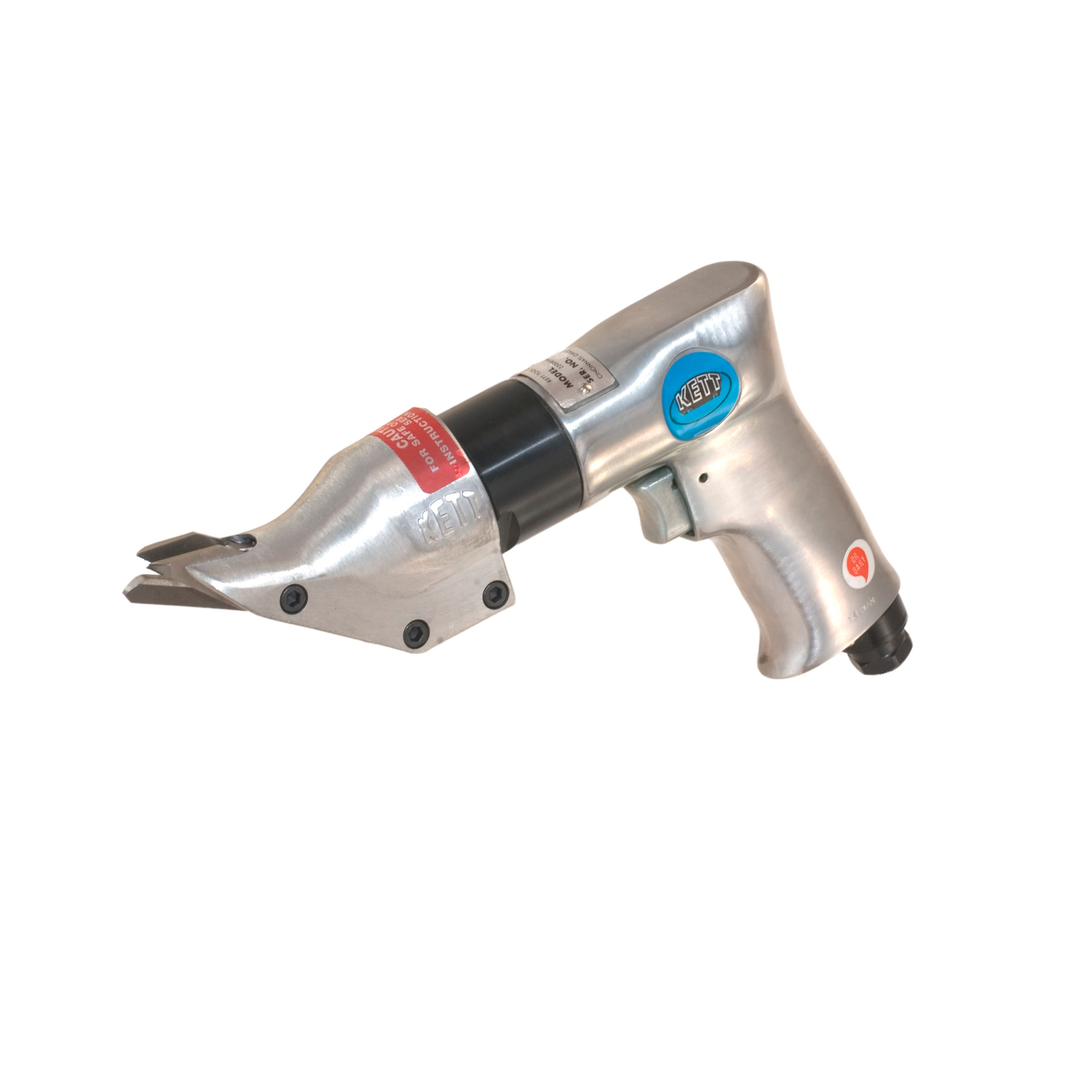

P-500 - 18 Gauge Metal Pneumatic Shear

P-500 - 18 Gauge Metal Pneumatic Shear

$202.40 USD
$202.40 USD
Sale In production
The P-500 18 Gauge Metal Pneumatic Shear is designed to cut cold-rolled mild steel up to 18 gauge and most grades of stainless steel up to 20 gauge at a rapid rate of 300 inches per minute. The controlled waste strip prevents warping or burring of your finished piece. The variable speed motor performs at 90 PSI with 2200 RPM to help cut up to 300 inches per minute. The P-500 includes our reliable, long-lasting A-2 tool steel blades that are designed to outlast any other cutting method.

Specifications
RPM
0-2200
Power Source
90 psi
Shear Head
60-20 Aluminum
Cutting Speed
180 in/min
Min. Cutting Radius
6 in
Cold-Rolled Steel Capability
18 Gauge
Stainless Steel Capability
20 Gauge

Manual & parts

Manual, specifications and parts lists for the Kett P-500 18 Gauge Double-Cut Shears.

Read the manual & parts list

Replacement parts

Every part is listed with its assembly on the manual page.
