P-542 - 16 Gauge Metal Pneumatic Shear

P-542 - 16 Gauge Metal Pneumatic Shear

$417.00 CAD
$417.00 CAD
Promotion Épuisé

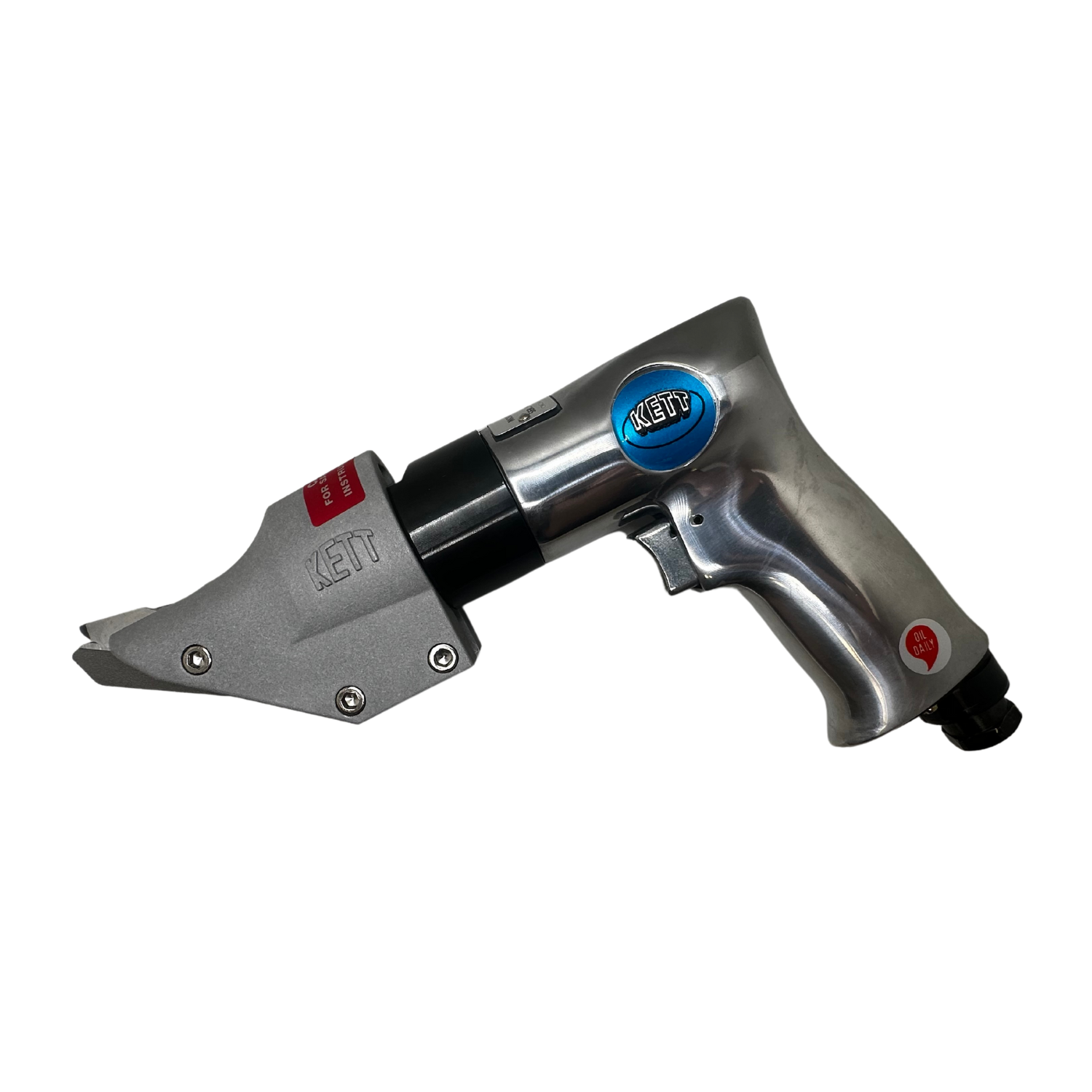

The P-542 16 Gauge Metal Pneumatic Shear is designed to cut cold-rolled mild steel up to 16 gauge and most grades of stainless steel up to 18 gauge at a rate of 170 inches per minute. The controlled waste strip prevents warping or burring of your finished piece. The variable speed motor performs at 90 PSI with 2200 RPM to help cut up to 170 inches per minute. The P-542 includes our reliable, long-lasting A-2 tool steel blades that are designed to outlast any other cutting method.

Specifications
RPM
0-2200
Power Source
90 psi
Shear Head
42-20 Aluminum
Cutting Speed
170 in/min
Min. Cutting Radius
7 in
Cold-Rolled Steel Capability
16 Gauge
Stainless Steel Capability
18 Gauge

Manual & parts

Manual, specifications and parts lists for the Kett P-542 16 Gauge Double-Cut Shears.

Read the manual & parts list

Replacement parts

Every part is listed with its assembly on the manual page.
