P-2040 - 14 Gauge Metal Pneumatic Straight Shear

P-2040 - 14 Gauge Metal Pneumatic Straight Shear

$424.00 CAD
$424.00 CAD
Promotion Épuisé

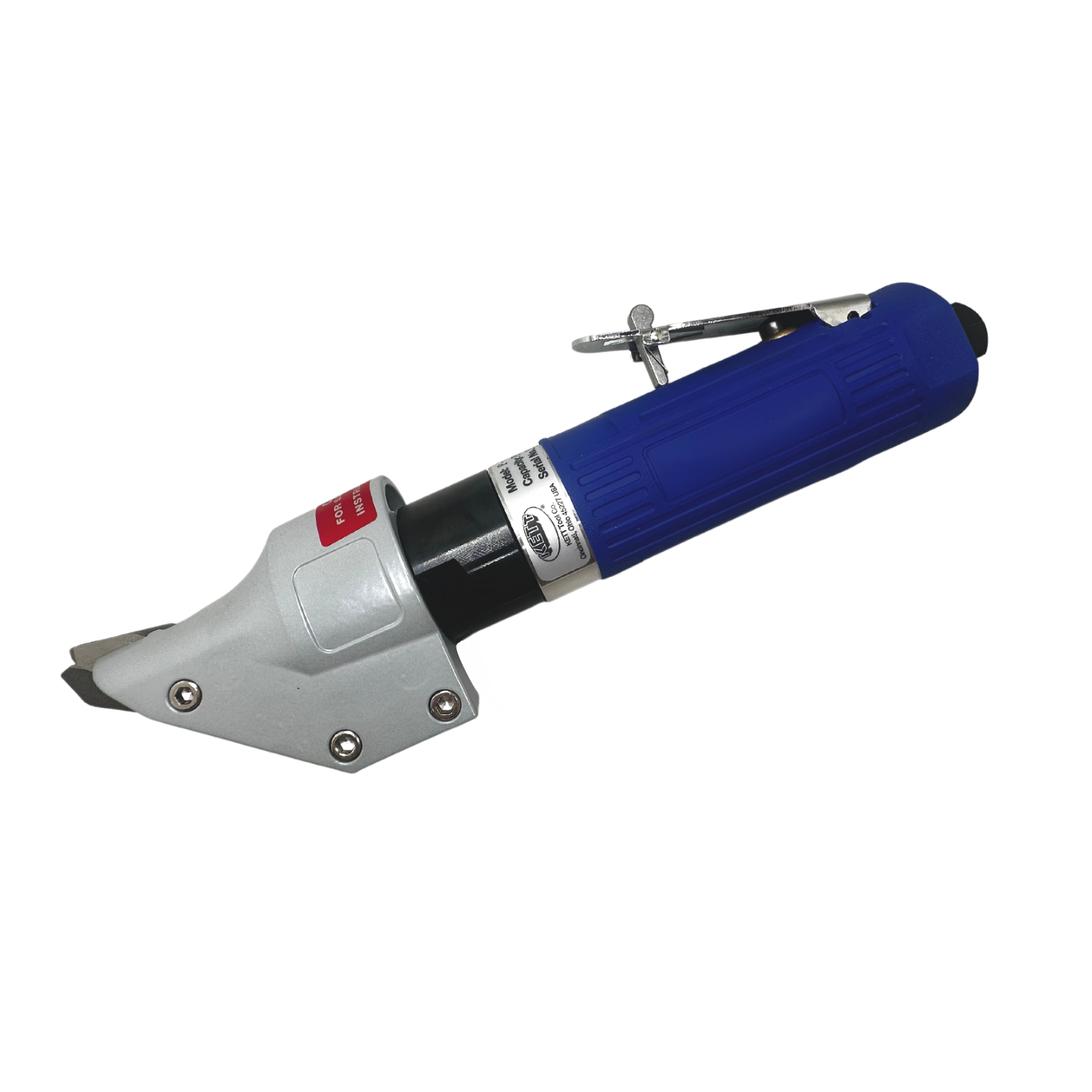

The P-2040 14 Gauge Metal Pneumatic Shear is designed to cut cold-rolled mild steel up to 14 gauge and most grades of stainless steel up to 16 gauge at a rate of 170 inches per minute. The controlled waste strip prevents warping or burring of your finished piece. The variable speed motor performs at 90 PSI with 2500 RPM to help cut up to 170 inches per minute. The P-540 includes our reliable, long-lasting A-2 tool steel blades that are designed to outlast any other cutting method.

Specifications
RPM
0-2500
Power Source
90 psi
Shear Head
40-20 Steel
Cutting Speed
170 in/min
Min. Cutting Radius
7 in
Cold-Rolled Steel Capability
14 Gauge
Stainless Steel Capability
16 Gauge

Manual & parts

Manual, specifications and parts lists for the Kett P-2040 14 Gauge Double-Cut Shears.

Read the manual & parts list

Replacement parts

Every part is listed with its assembly on the manual page.
